Lyft Sleek

Different from the commonly-available scissors structure, CM series motorized projector lift is using a one-armed structure made from aluminum alloy, which can avoid the front- to-back and side-to-side swing problem. The anti-broken structure ensures the security of use. this series including three models CM 50 CM 100 CM 150, customer could choose the proper lift according to different ceiling, besides these standard size, we could produce the lift as client’s customized requirement, the customized size couldn’t exceed 2 meter, weight capacity is 40 kg.

– Installation – quick installation, simple construction, easy accessibility

– Mechanical structure: folding one-armed

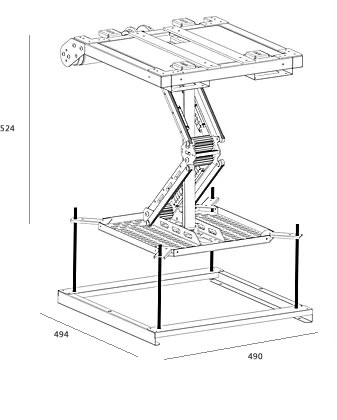

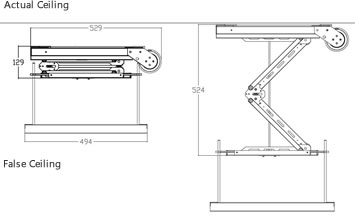

– Overall dimension: 453x528x129mm

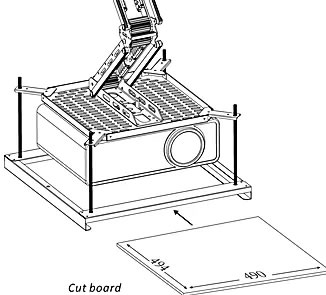

– Ceiling opening: 500x500mm/550x550mm

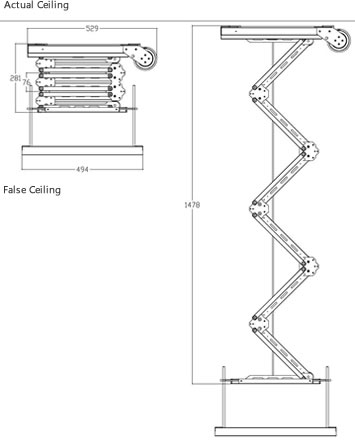

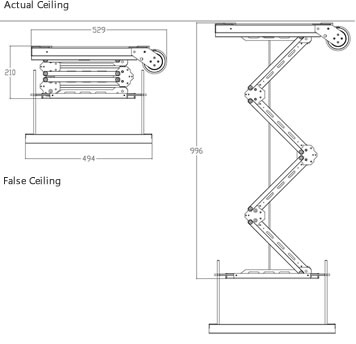

– Traveling distance: 130-1500mm

– Distance from ceiling to false ceiling: 350-550mm

– Suggestion projector size: 480x410mm

– Built-in cable: AC power cord

– Weight capacity: 40 kg

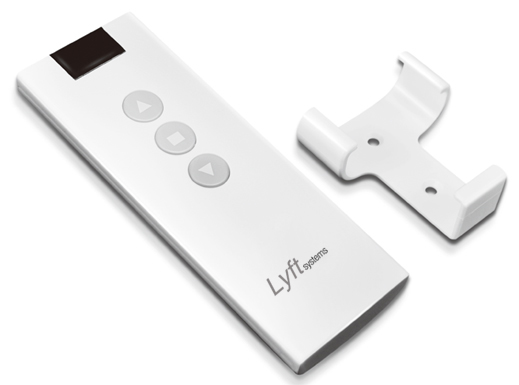

– Control system: RF/RS232/485

– Patent no.CN205560196U RoHS

SLEEK

Redesigned using 2 x Scissors-lift with gear properties to stabilize the extended structure

We have successfully redesigned the Lyft's Scissors-arm by fabricating it into a SLEEK single arm.
