Surface Mount Motorized Screen B

The rubber antinoise and antivibration mechanism on the roller with quite motor ensures a quiet and smooth operation. What’s more, incorporated into this clean design structure are special-indent European motors that ensure flat projection surface over long period of time. Its Big Roll design further reduces moisture or dust from entering when stored. The Surface Mount equiped with standard 3 button in-line switch (to control the Up/Down/Stop position) and can be installed both in contruction or completed stage.

Available in different screen materials for image enhancement - Matte White, High Contrast Grey

Specification

Motor in roller design – Special motor in roller design maintains quiet and smooth operation.

Equipped with quiet motor – Equipped with a quiet motor for quiet operation.Even after extensive testing of the high quality coreof over ten thousand revolutions, the motor remains durable and efficient.

Unique roller design ensure the flattest screen surface – Large diameter rollers ensure long-term screen integrity providing a consistent flat projection surface.

Custom size – A black border is all around the screen fabric.Standard large upper black drop for format at 16:9 and 2.35:1. Customer-required format or black border is acceptable.

Equipped with standard 3 button in-line switch

Features

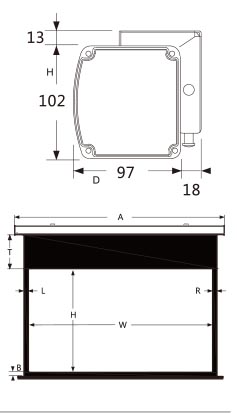

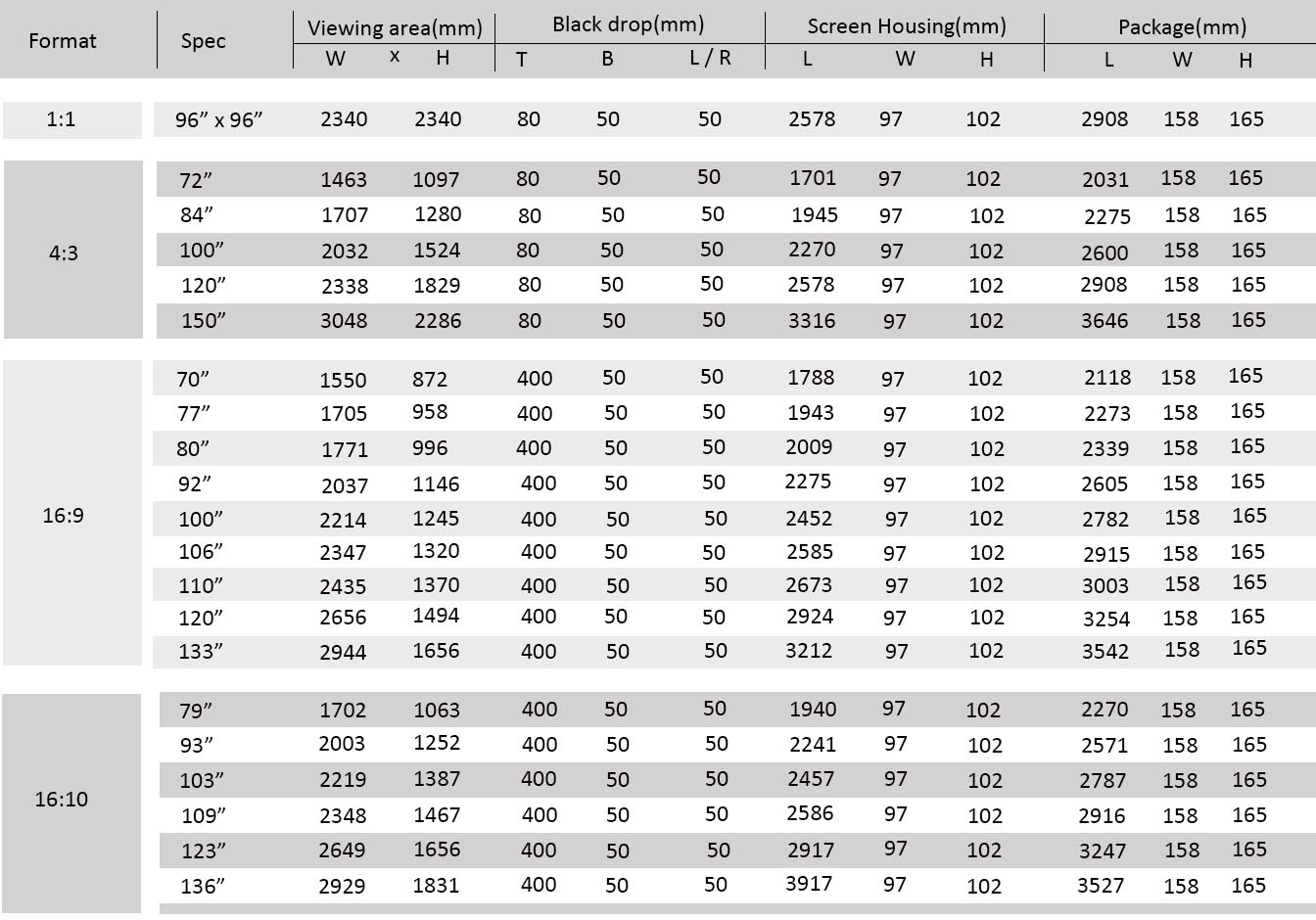

Screen Dimensions

Detail

Screen Size Calculator

Screen Surface Material




Frame Type


Calculate Viewing Area Dimension

Enter the measurement that you know (diagonal, width or height) and the other two will be calculated.

inches
inches
inches
